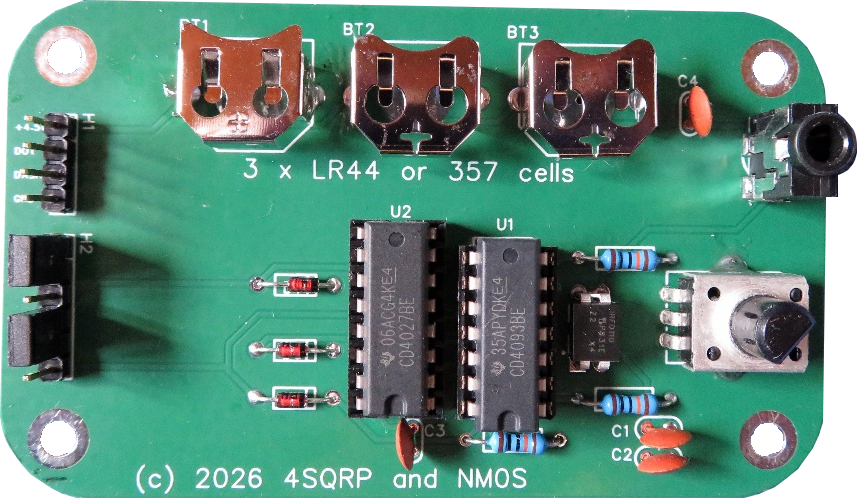

Introducing the 4SQRP Mentho-Morse

Hearkening back to a previous generation of QRPers, the Mentho-Morse is a simple, easy to use capacitive touch keyer, designed to use an Altoids (TM) tin as an enclosure! Morse dots and dashes are formed by lightly touching sensor pads on the upper board of the keyer, and an iambic keyer circuit inside does the rest.

The kit is built so the lid of the Altoids tin closes over the electronics when not in use, completely shielding and protecting it from the elements. Utilizing only a handful of components, the Mentho-Morse assembles in less than an hour, and is a useful addition to your portable QRP station.

This is a simple kit, suitable for builders of any skill level.

Specifications:

Reversable dot and dash touch sensor on upper board
18 total components
Adjustable 5 WPM to 50 WPM keying rate
Powered by 3 ea. LR44 button cells, included
Estimated battery life: 500 hours of moderate use

Documentation

Assembly Manual

Schematic 1

Schematic 2

Parts List BOM

CD4027 Datasheet

CD4093 Datasheet

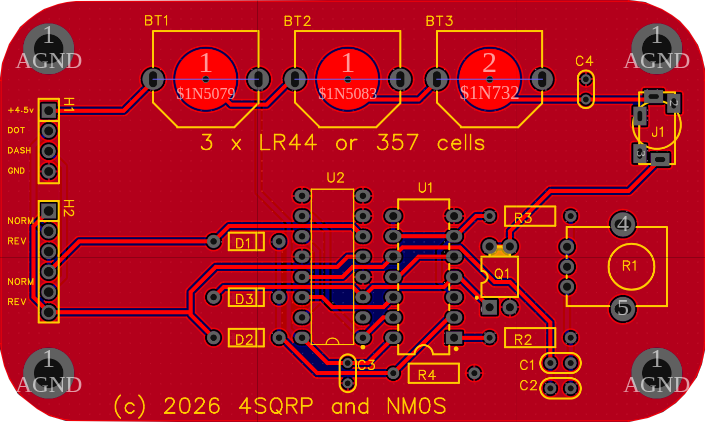

PCB Layout Part Location.

Photo Page Kit pix and building tips.

Posted with permission
Electronics 2000's Capacitor Identification Page
Electronics 2000's Resistor Code Graphic Calculator

Ordering Information:

• The cost of this kit is $ 40.00
with a shipping cost of $ 10.00

• DX Buyers, check HamRadioLand for availability.

• Note to Canadian Purchasers:
Due to high bank processing fees,
we can no longer accept Canadian Money Orders.

• If paying by check or money order (U.S. $ only),
please make it out to "Four State QRP Group" for the
indicated cost of each kit purchased.
Do not forget to specify the Operating Band for the radio.
Then mail your order to:

Four State QRP Group
Johnny Matlock ACØBQ
379 23rd Road
Lebo, Ks 66856

The Mentho Morse is carefully kitted and shipped by Ray McNally, N5SEZ
Please direct shipping, kit, and part related questions to Ray McNally

All proceeds are applied toward funding OzarkCon.
Thank you for supporting The Four State QRP Group.
