Cyclone PTO Mod Photo Gallery
Click any picture for a full size image and scroll down for all.

Pull C15 and clean out holes
Photo by WØOTM
Install new NP0 disk caps with long leads Photo by WØOTM

Install new poly cap, glue to U1
Photo by W0OTM

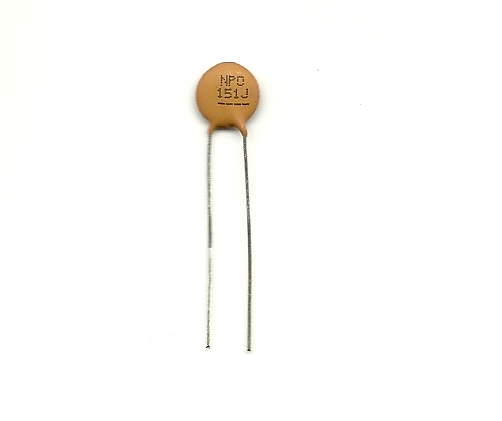

150pf NP0 Disk Cap included
in mod parts envelope


Note amount of glue
Note amount of glue

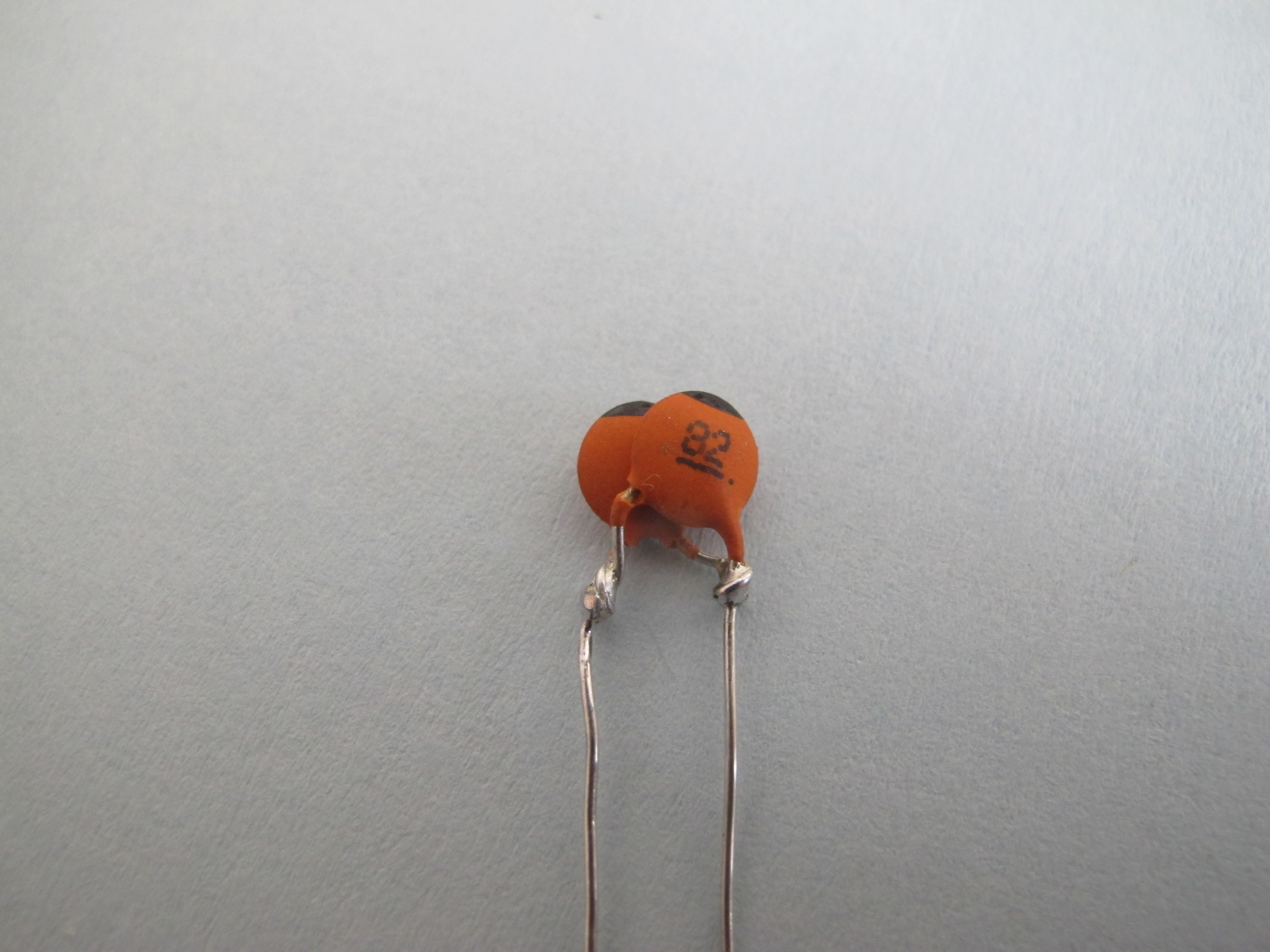

Parallel NP0 Disk Caps
Used in Beta testing

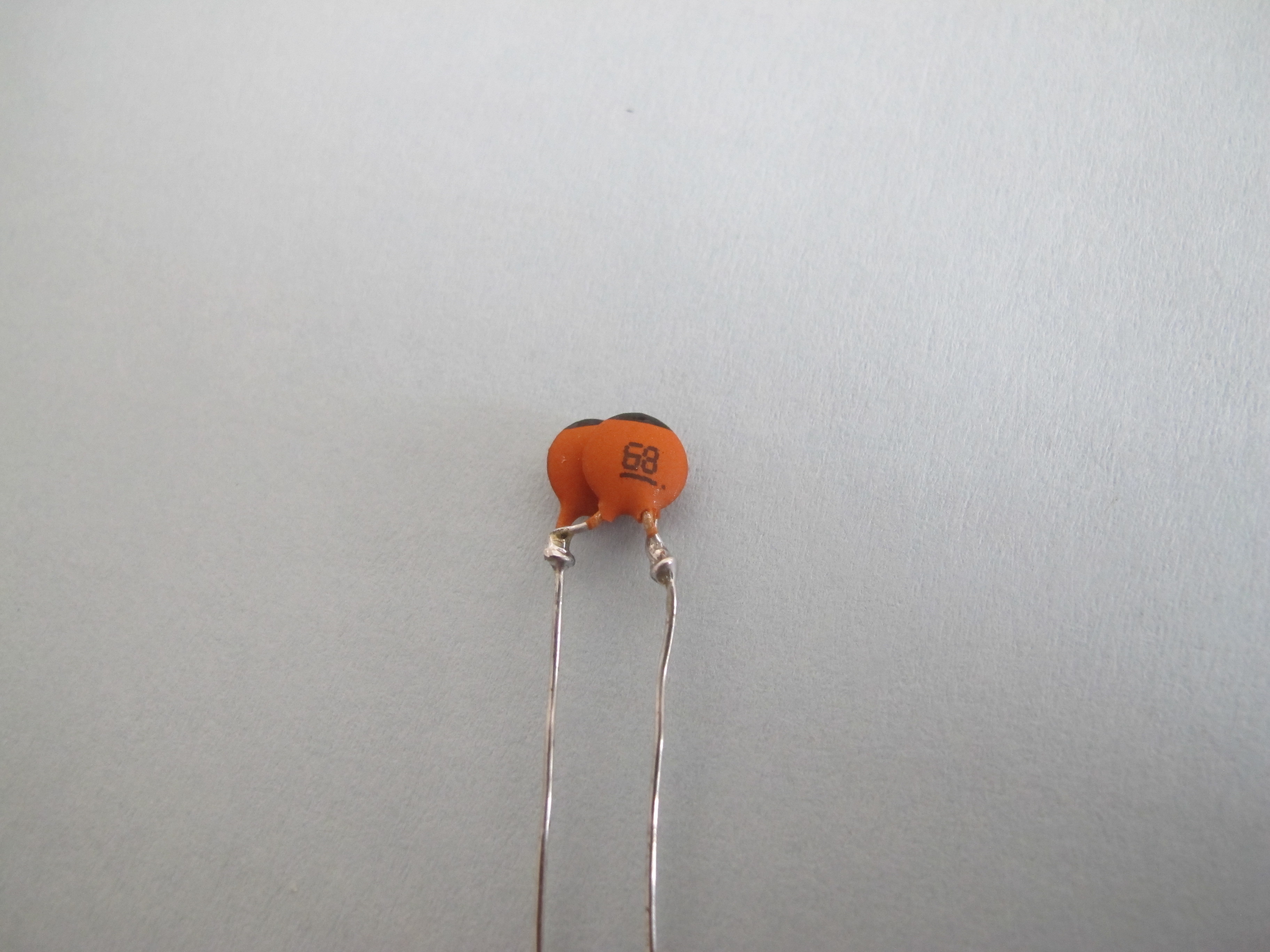

Parallel NP0 Disk Caps
Used in Beta testing

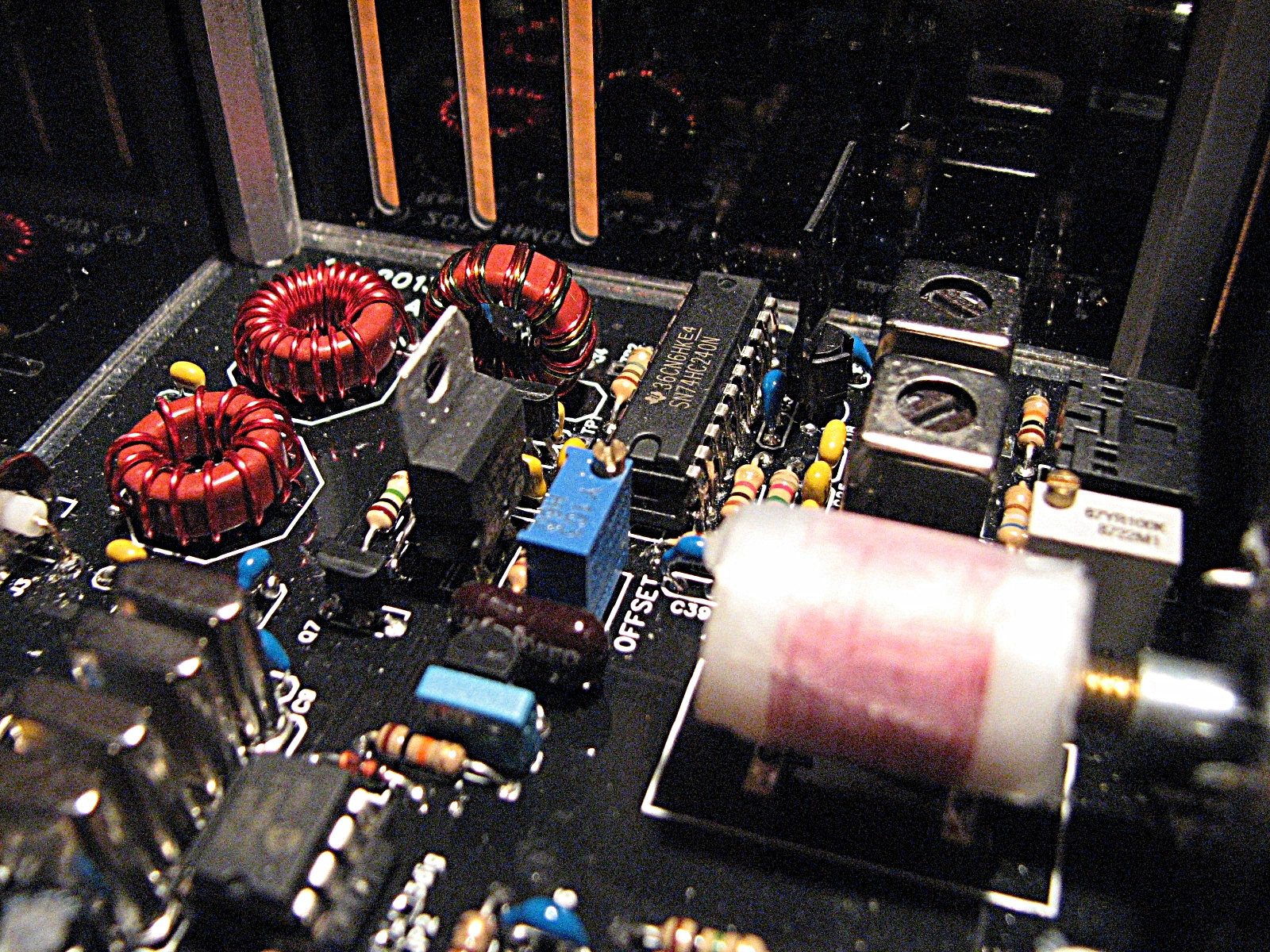

K9PL Photo, unmodified for reference.
XXXXX
