Class E Amplifier Design Spreadsheet Roll your own efficient and cool running Class E Final amp. it's easy to do using this convenient spreadsheet.

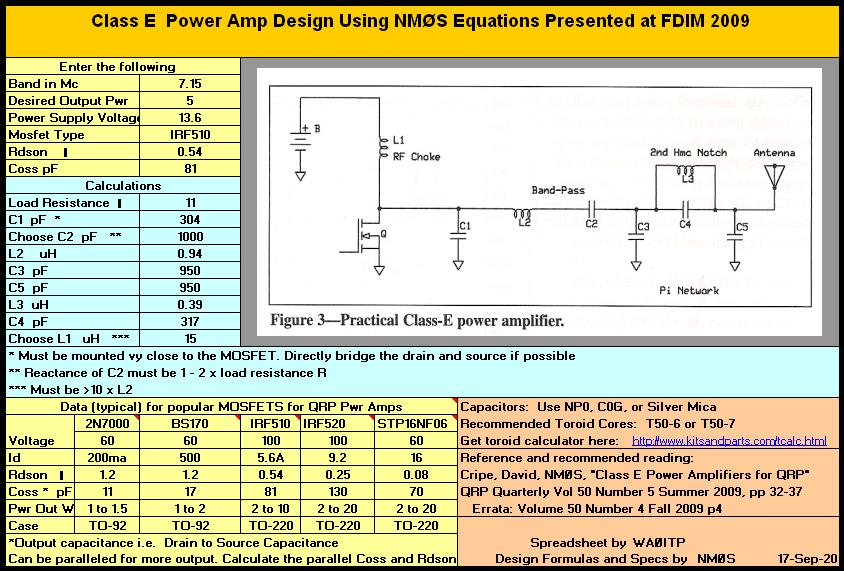

Choose the band, power supply voltage, and output power you want, and pick a transistor from a table. Then only two parameters are entered, and they're right there for you, no looking up on a data sheet. The spreadsheet then does all the calculations for you. A schematic is included for component identification, and a 5 watt IRF510 amp is already entered as an example. It's so easy a caveman could do it.
The spreadsheet is based on design formulas from David Cripe,NMØS.
Click To Download
