Another Cable Strain Relief

By Terry, WAØITP

While browsing the web site. I noticed Dennis' strain relief on the web page, good idea. While building the same project, the AzSQRPion's mini paddle, I also pondered how to make a strain relief.

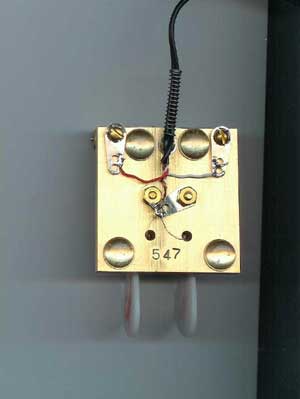

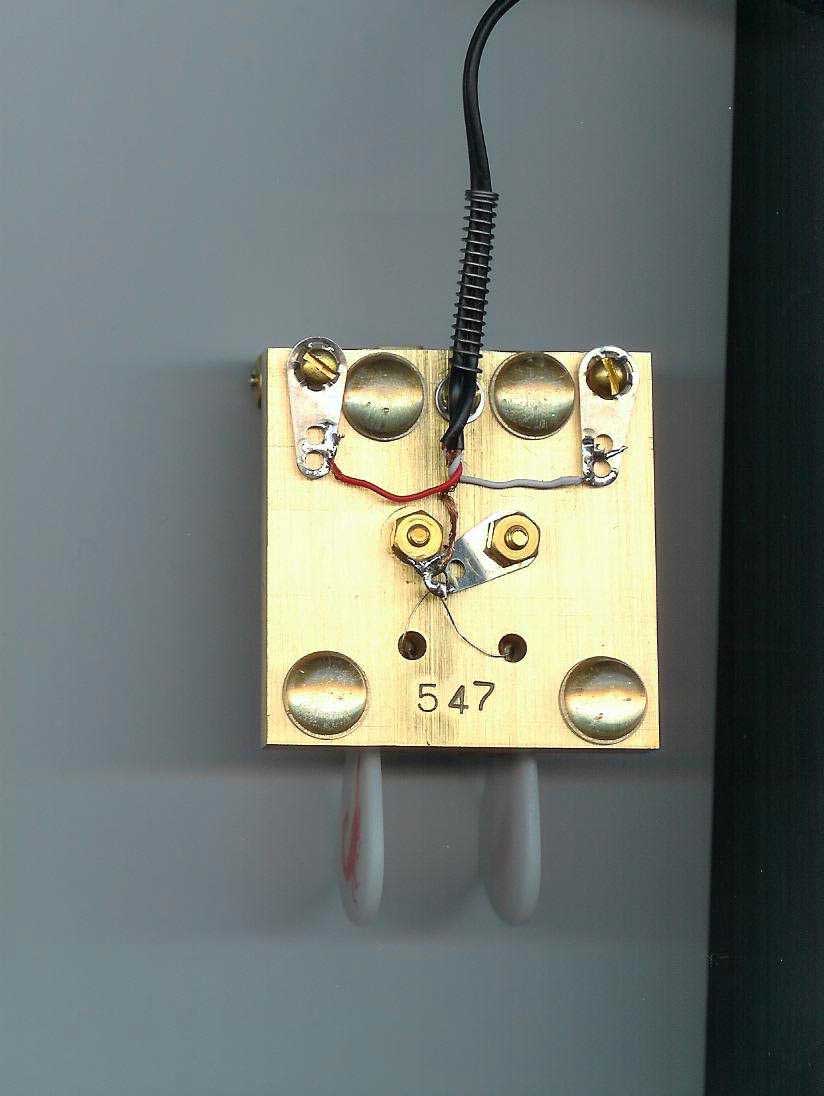

Picking up a retractable ball point pen to jot a few notes I absent mindedly clicked it a few times - and the light came on.. attached is a picture of the spring strain relief on the bottom of my paddle. Just bend the first coil at right angles and bolt it down. I hope someone can make use of this idea.



72/73 Terry WAØITP
