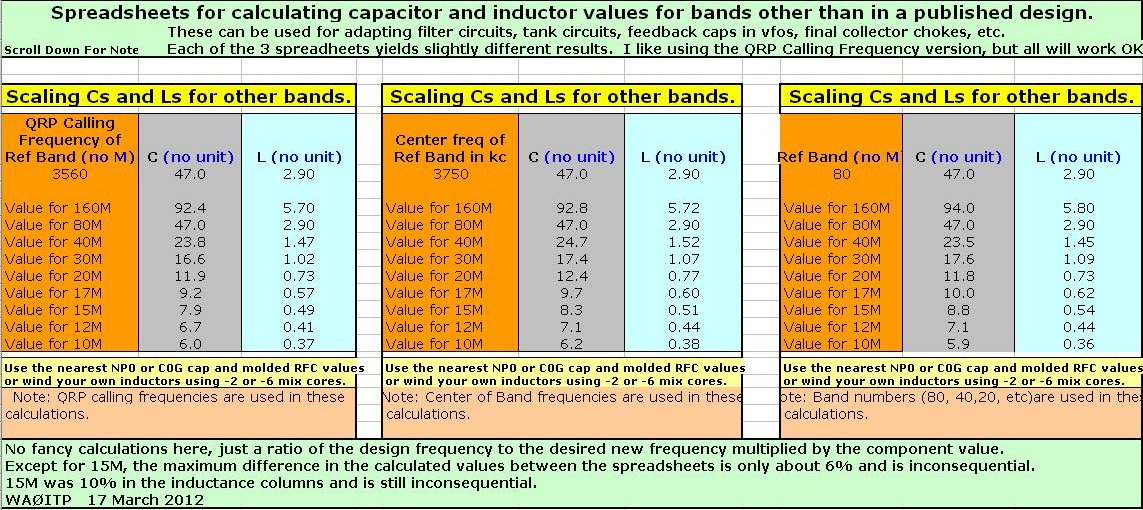

for bands other than in a published design. | ||
| These can be used for adapting filter circuits, tank circuits, feedback caps in vfos, final collector chokes, etc. | ||
| No fancy calculations here, just a ratio of the design frequency to the desired new frequency multiplied by the component value. Except for 15M, the maximum difference in the calculated values between the spreadsheets is only about 6% and is inconsequential. 15M was 10% in the inductance columns and is still inconsequential. |
||
| WAĜITP 17 March 2012 | ||
 | ||
| Click To Open | ||
| Feel free to save a copy to your computer. |
