QRPOMETER
Power/SWR Meter
Photo Page
4SQRP QRPometer

Most are Clickable for Larger Image.


KØNEB Front View

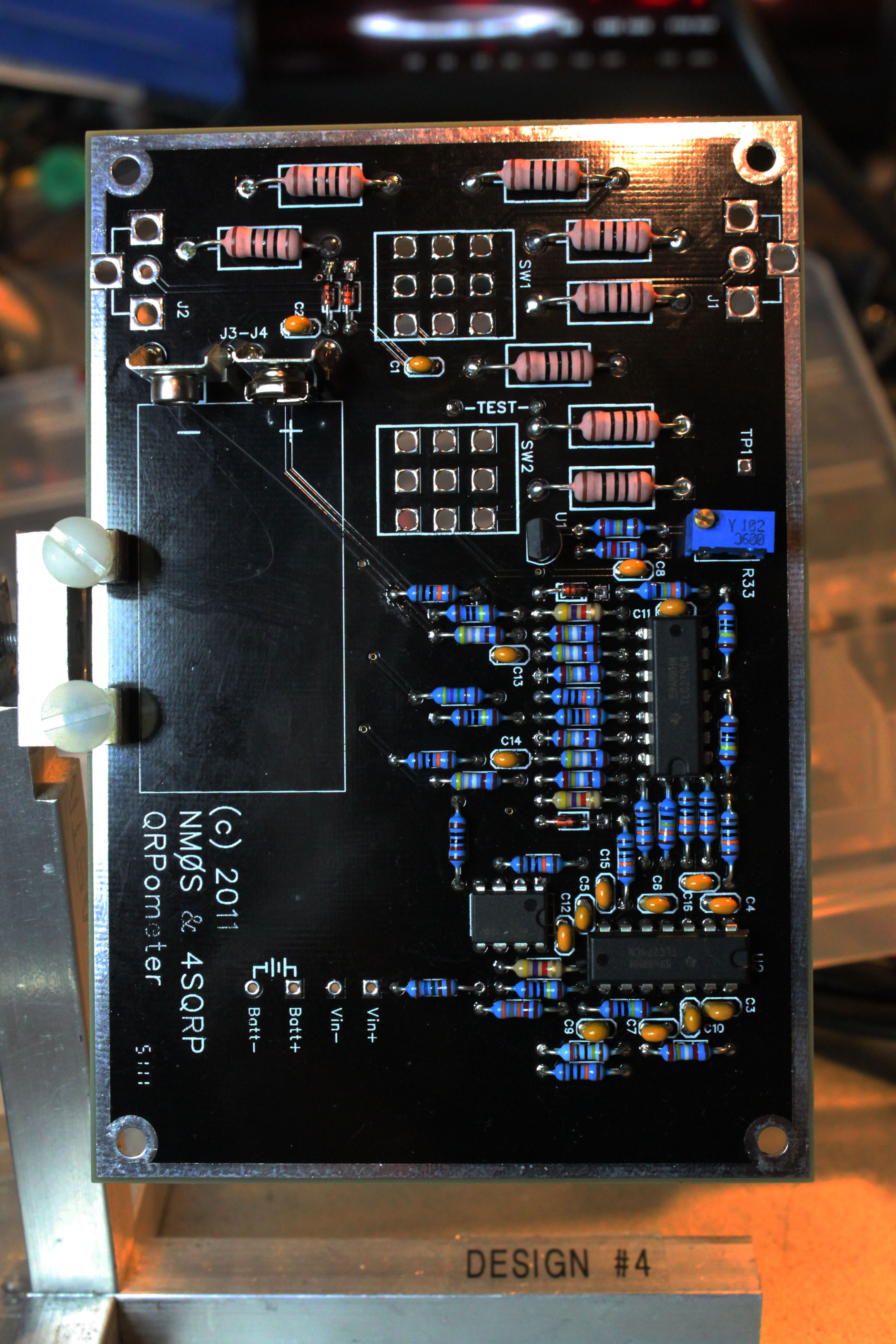

KØNEB Populated bottom board

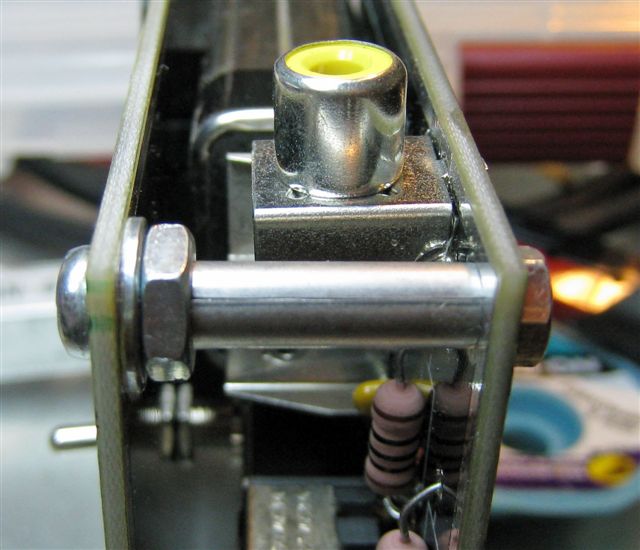

KØNEB Single nut with supplied spacer

KØNEB Populated bottom board

qrp

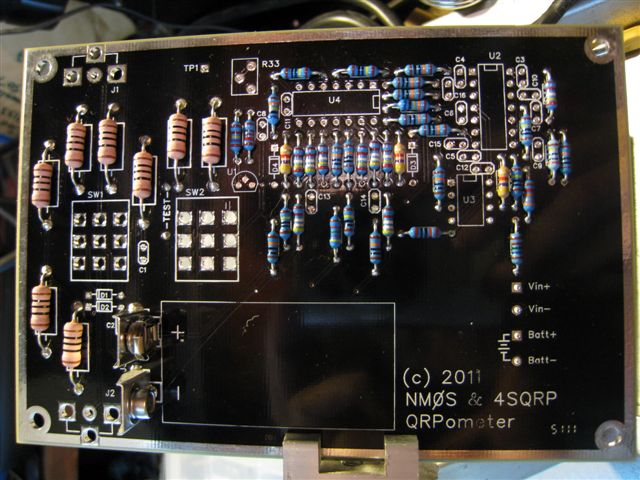

KØNEB Bottom board, click for larger Image
qrp

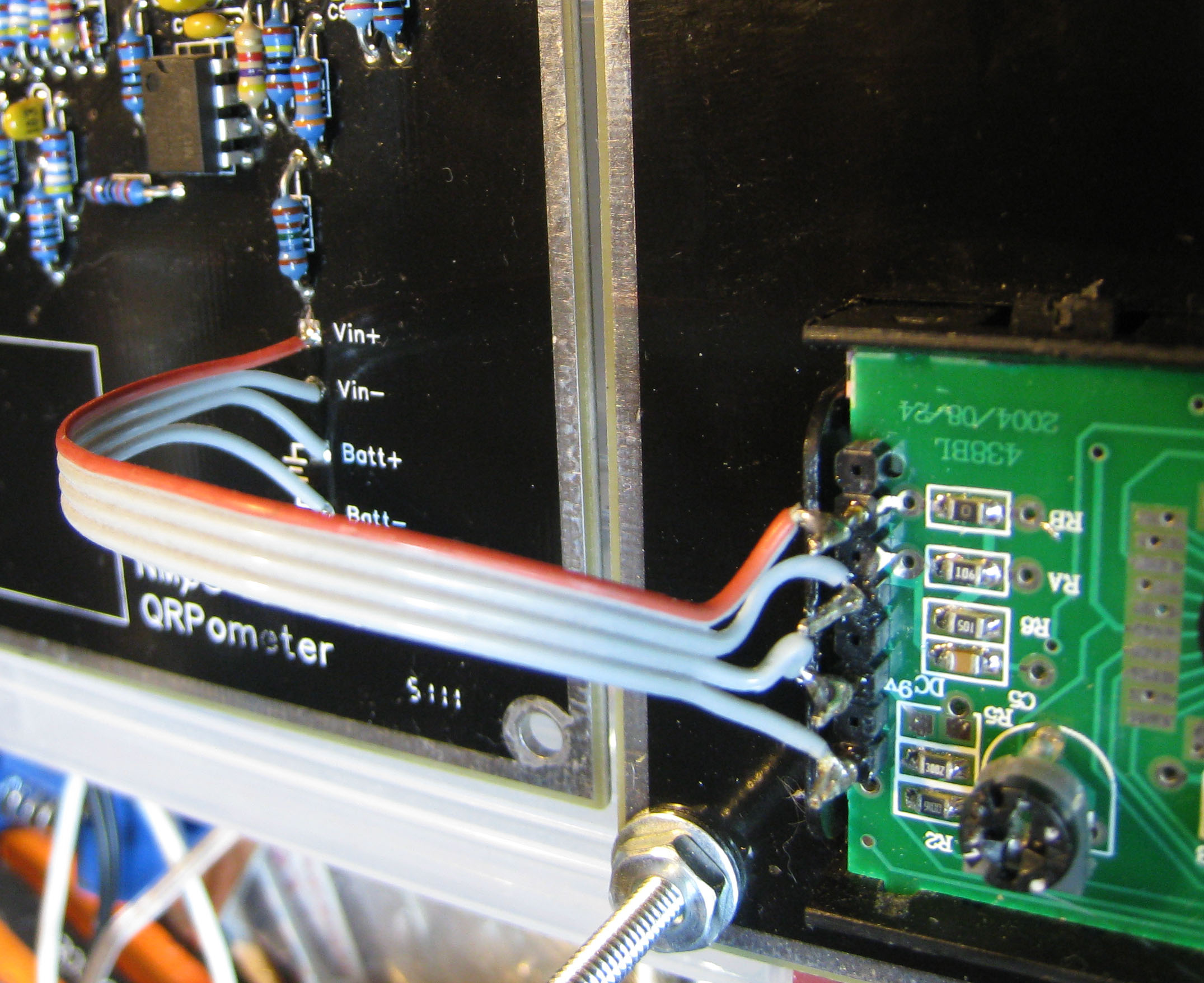

K0NEB's ribbon cable, Click for Larger Image

qrp

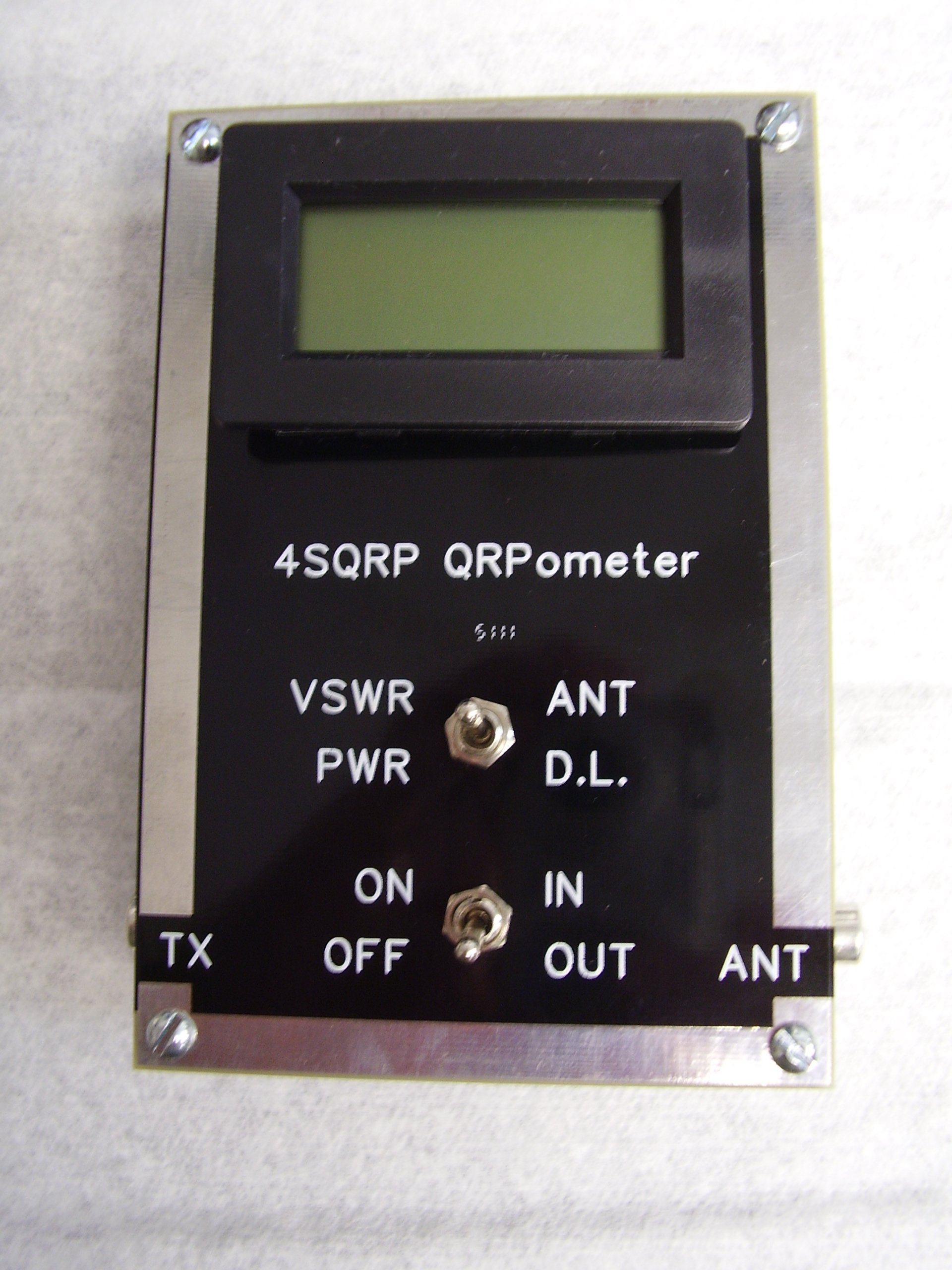

KC0PMH Finished
qrp

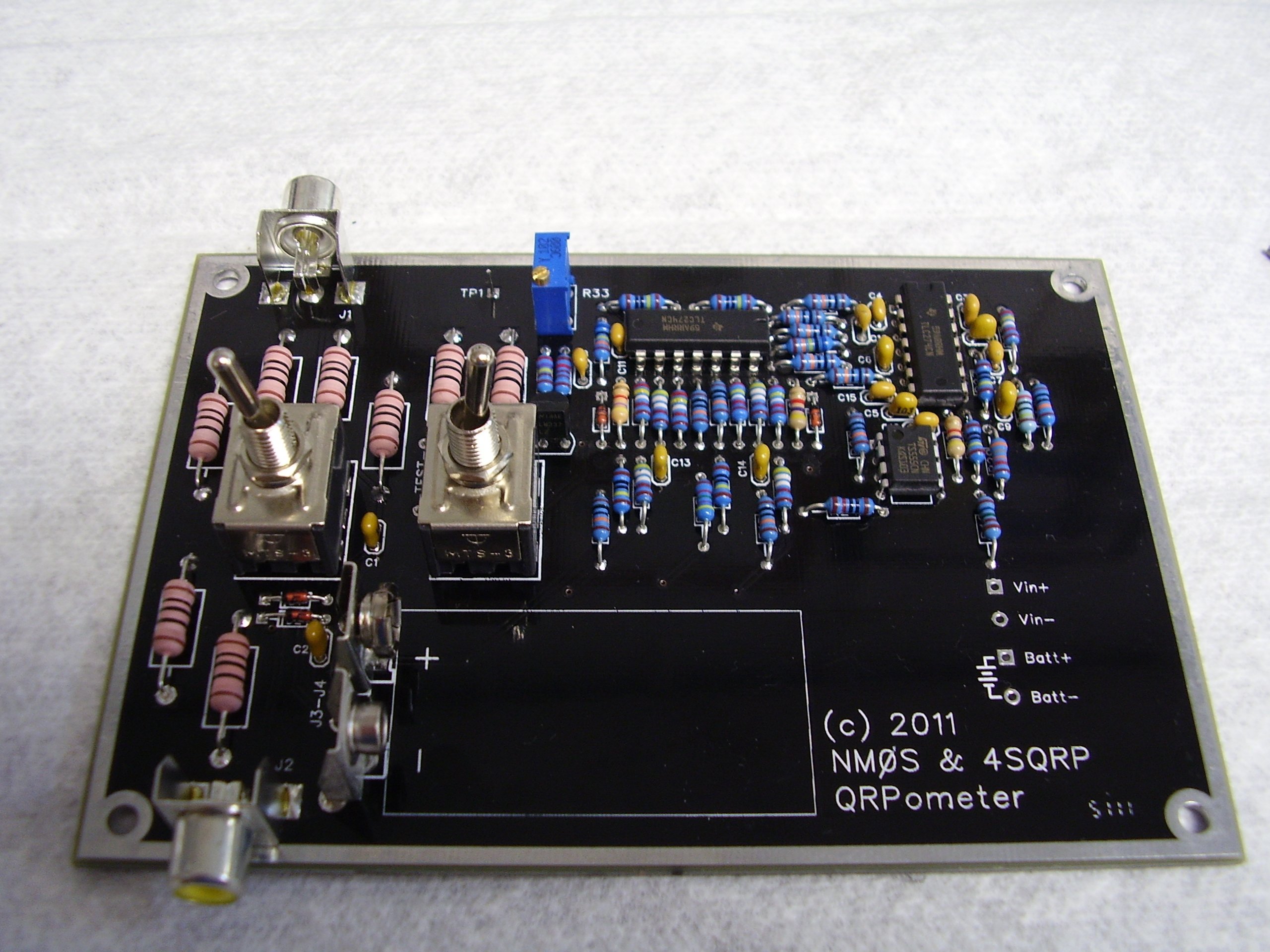

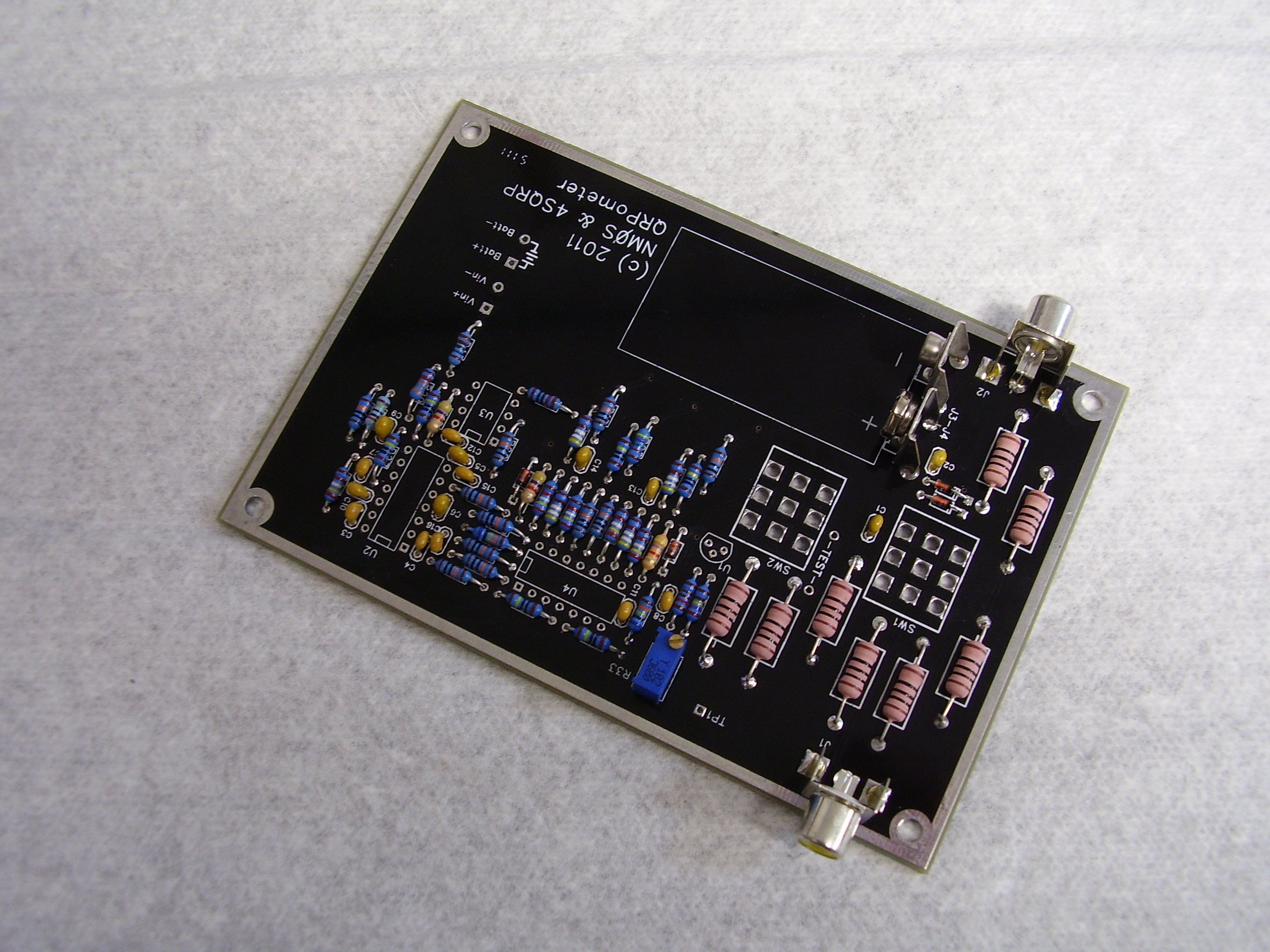

KC0PMH Board Mounted Parts

qrp

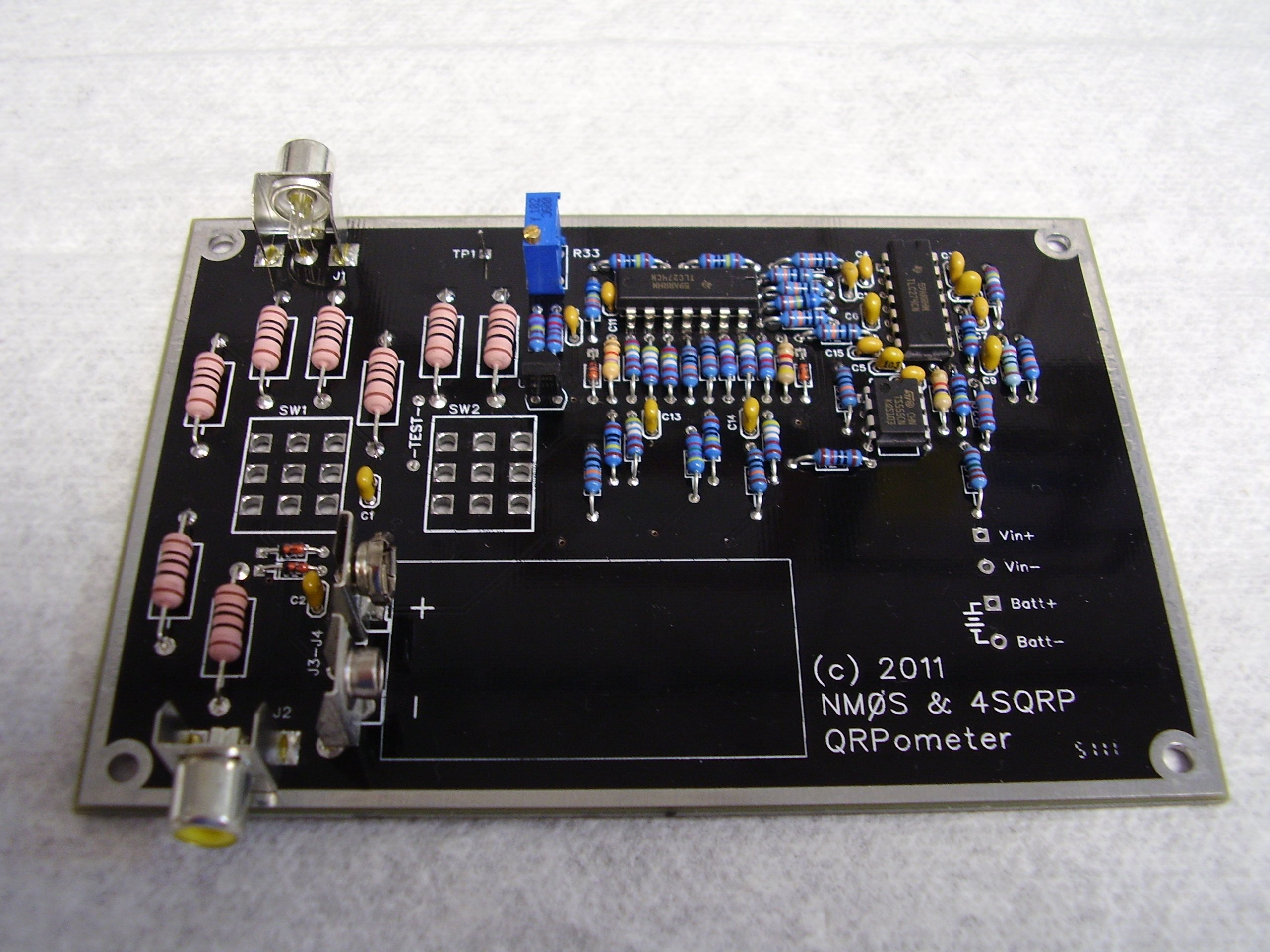

KC0PMH Semiconductors Installed
qrp

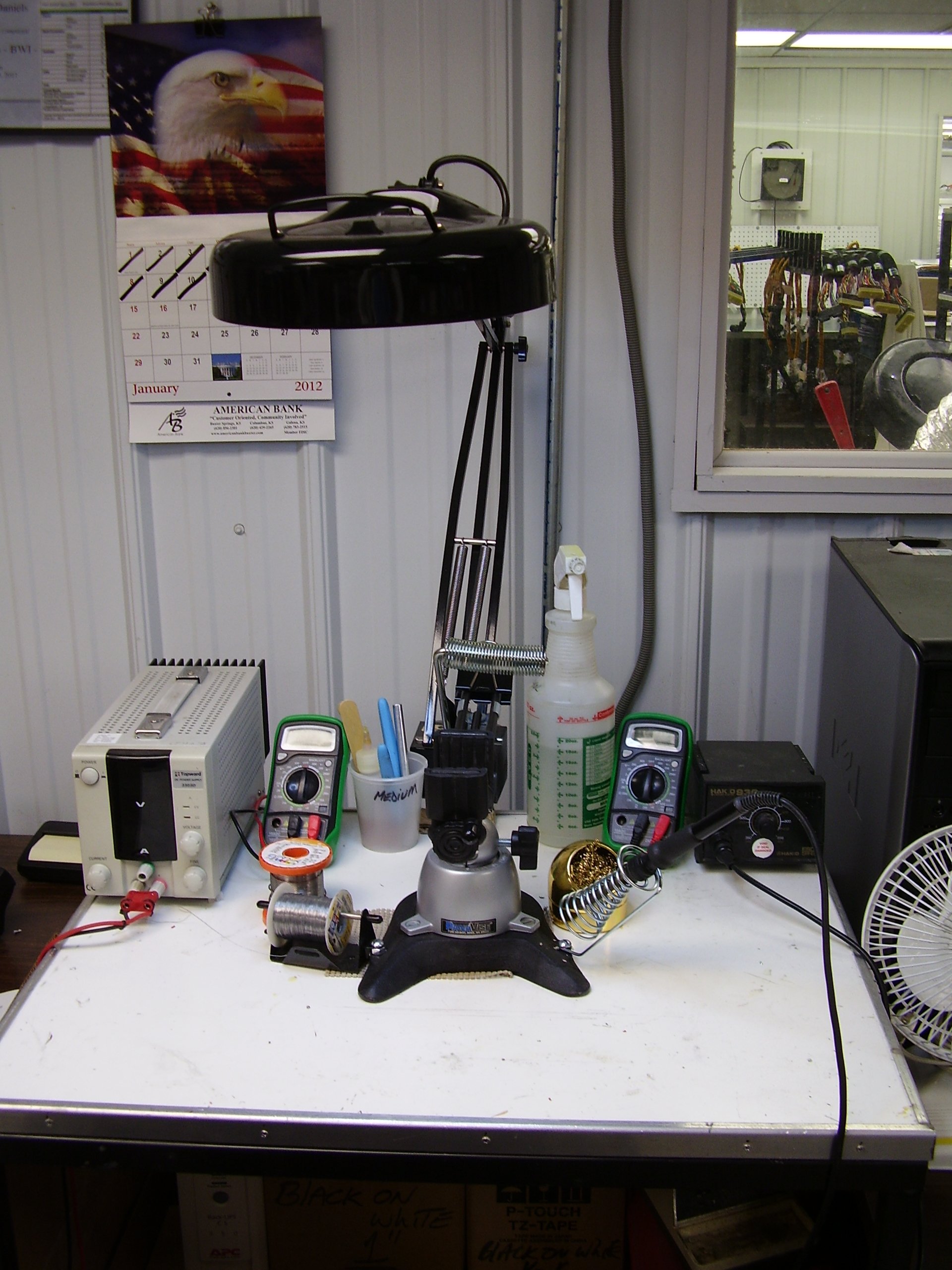

KCØPMH Work Station

qrp
KC0PMH Board Rs and Cs
qrp

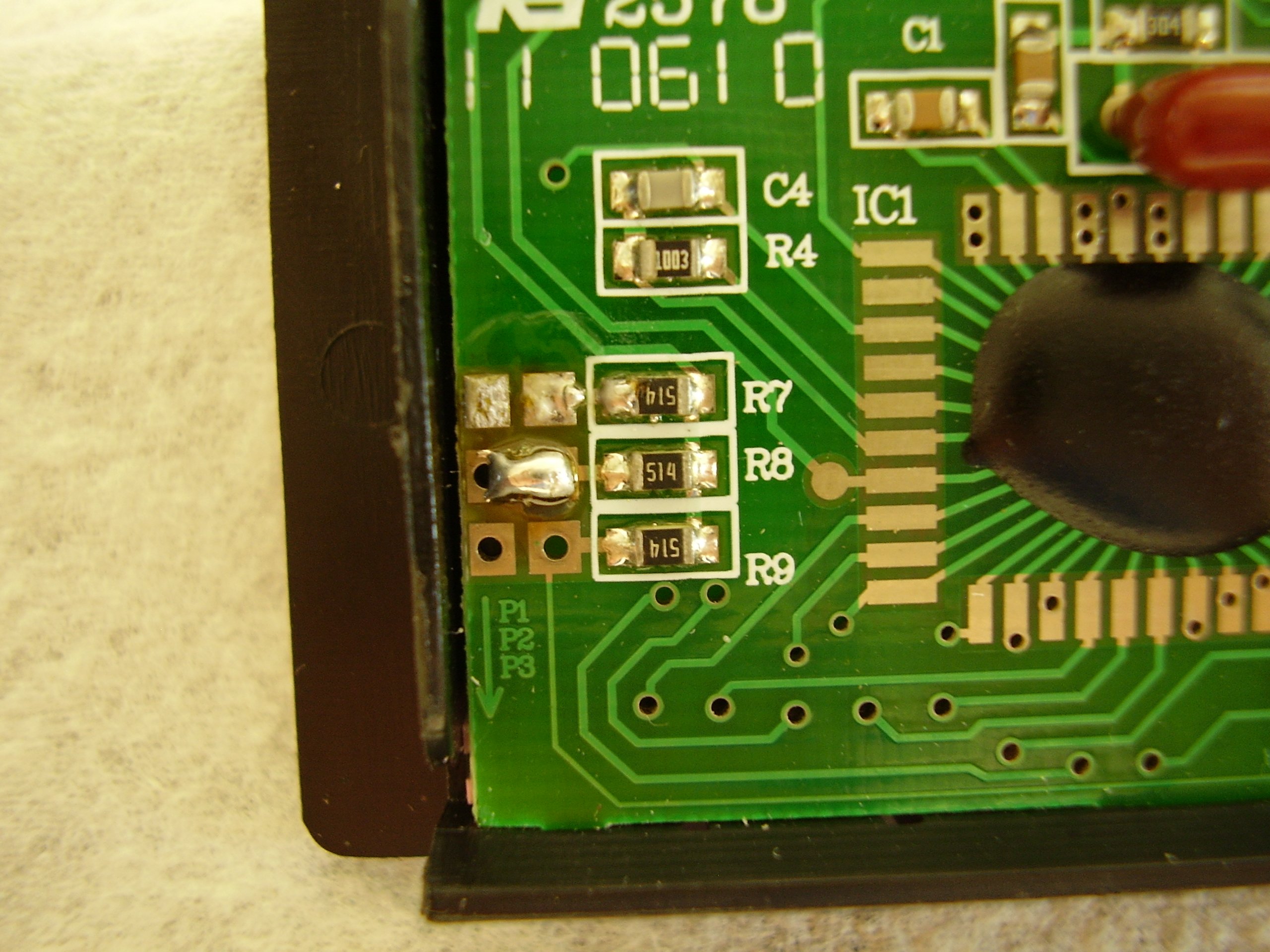

KC0PMH Jumpered P2 pad

qrp

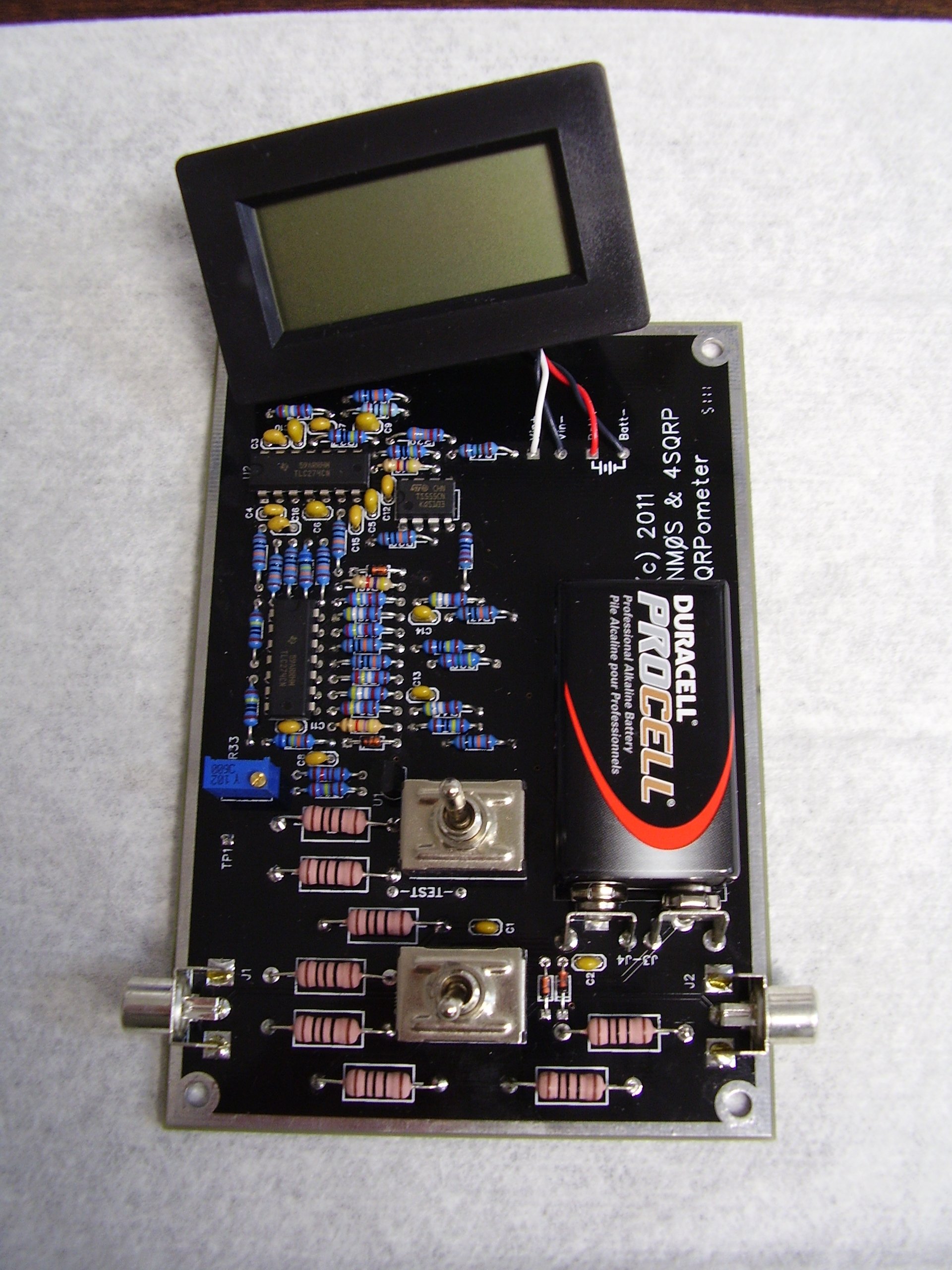

KC0PMH Module Connected

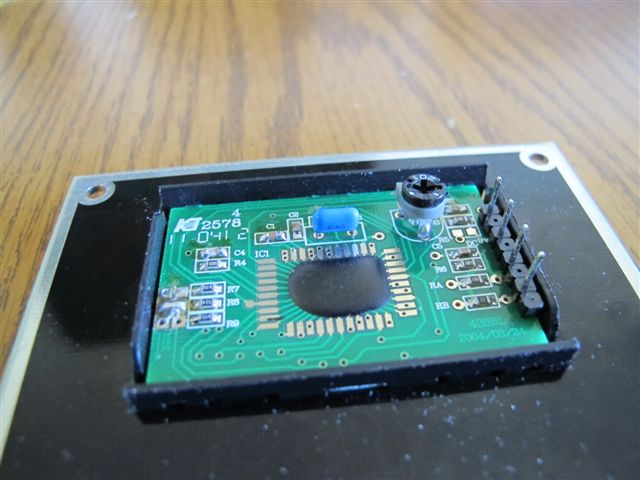

Display orientation for installation. Pins on right correctly places the pins over U2 when assembled.

qrp

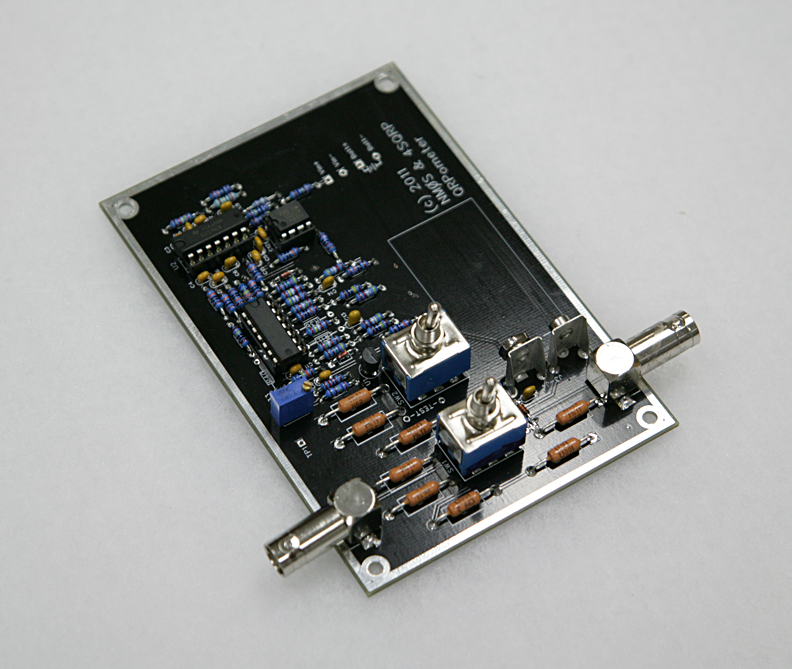

KD6A Populated Board
qrp

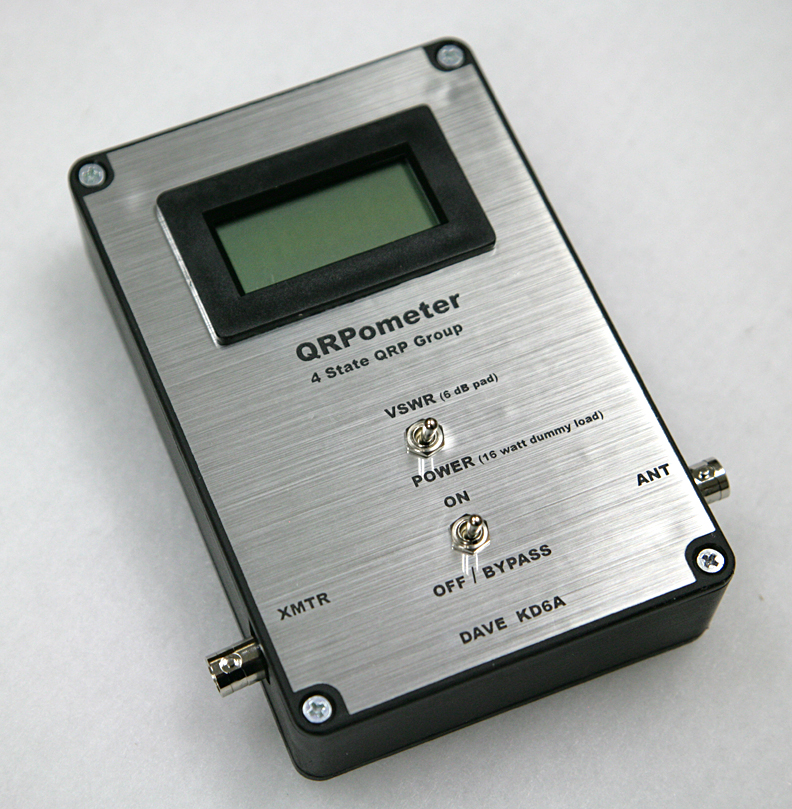

KD6A Custom Enclosure
